• Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format • Max. decoding capability: 8 × 1080p@30 fps or 4 × 4 MP@30 fps • Max. 80/80/60 Mbps incoming/recording/outgoing bandwidth • Supports IP cameras with a resolution up to 12 MP • AI by Recorder supports 4-channel SMD Plus • AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, people counting, stereo analysis and heat map • Supports EPTZ, and one-click arming and disarming |
Series Overview

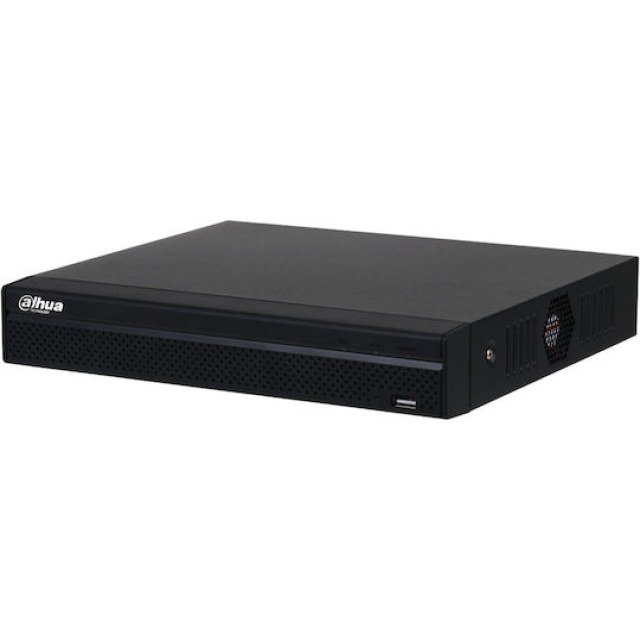

The NVR4000-4KS3 model of the Lite Series NVR is favored for its outstanding performance. It supports 4K resolution for scenes that require highly detailed images, and can serve as the edge, central, or backup storage with an intuitive shortcut menu for remote management and control. This NVR also features Smart Motion Detection (SMD) by recorder, which can distinguish target vehicles and humans from ordinary ones in real-time. When an IPC is connected to the NVR, a variety of AI functions become available such as face detection, perimeter protection, and people counting. This NVR is both cost-effective and easy-to-install, making it ideal for a wide range of applications such as for cities, transportation, education and finance.
Functions
Face Detection
Face detection is to detect if there is any human face appearing in the video. This technology adopts a deep learning algorithm to support face detection, tracking, optimization and capturing, and then output the best face snapshot.
Face Recognition
Dahua Face Recognition technology extracts the features of captured faces and compares them with that in face database.
Perimeter ProtectionAutomatically filters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy.
SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
Heat Map by Camera
Dahua heat map technology is used to display the crowd density and people appearance probability. Export and display the crowd status by different colors. Generally, the crowd status is the statistics of people quantity in space and time dimensions.
Stereo Analysis by Camera
With deep learning algorithm and 3-dimensional scene information, Dahua Stereo Analysis technology can recognize people's behaviors, such as fall detection, violence detection, stay detection, and space exception, and then generates alarm signals and triggers linkage.
